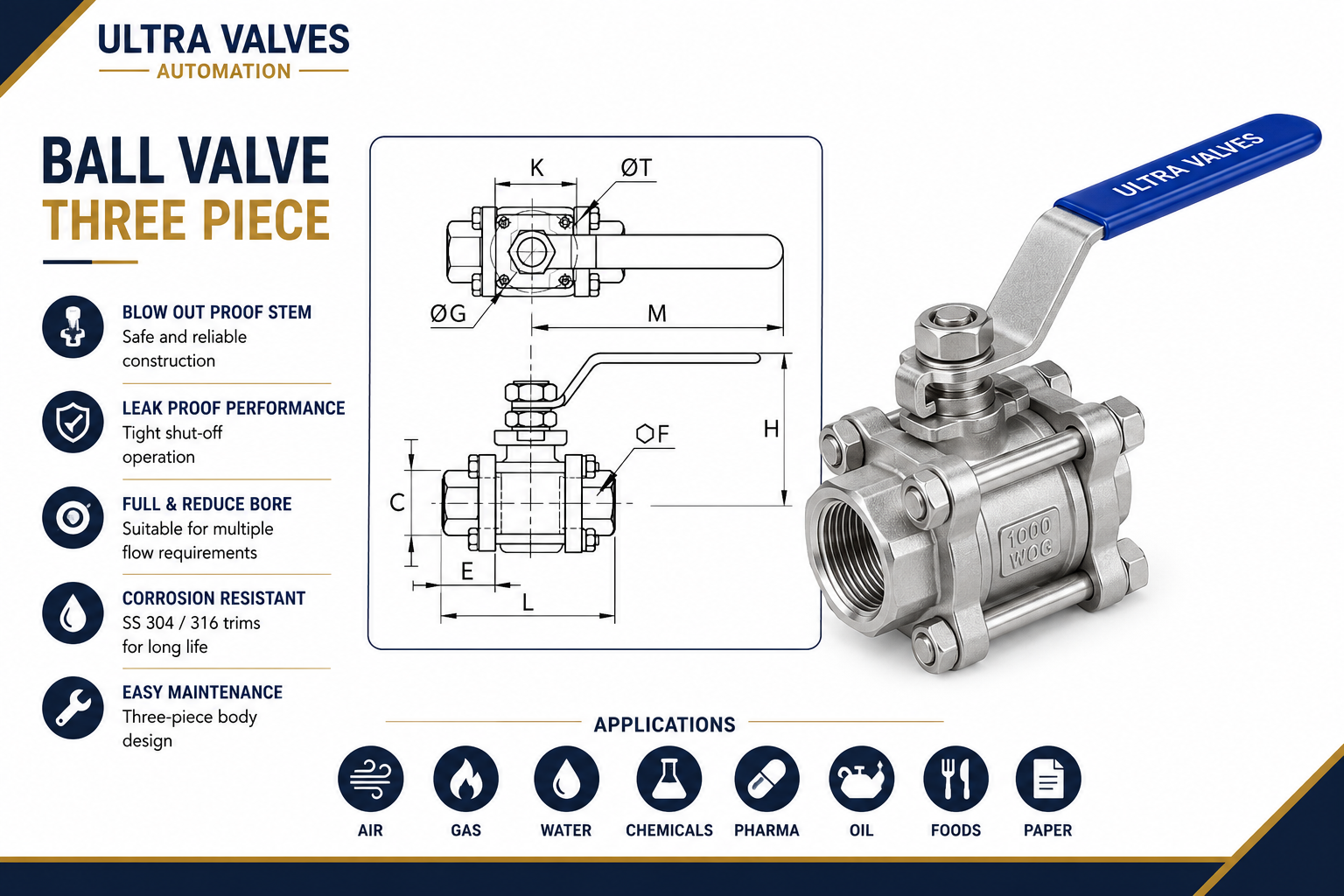

Ball Valve - Three Piece Screwed End

Design Three Piece Floating Ball Valve with Blow-Out Proof Stem
Body Material ASTM A216 Gr. WCB / CF8 / CF8M Investment Cast Construction
Ball & Trim Material SS304 / SS304L / SS316 / SS316L
Seat Material PTFE / Glass Filled PTFE (GFT) / Carbon Filled PTFE (CFT)
Operation Manual Lever Operated
Pressure Rating Class 300 / 600 / 800
End Connection Screwed Ends / Socket Weld Ends / Butt Weld Ends
Port Type Full Port / Reduced Port
Manufacturing Standard BS 5351 / ASME B16.34 / API 6D / MSS SP-72
Testing Standard API 598 / BS 6755
Applications Air, Gas, Water, Chemicals, Pharmaceuticals, Oils, Acids, Food Processing, Vacuum Systems, Heat Treatment Plants, Paper & Sugar Industries

Three Piece Screwed End Ball Valves are designed for efficient flow control and positive shut-off in industrial piping systems. Featuring a precision-engineered floating ball design and blow-out proof stem construction, these valves provide reliable sealing, smooth operation, and enhanced safety. The three-piece body design allows easy maintenance and replacement of internal components without removing the valve from the pipeline. Manufactured using high-quality investment cast carbon steel and stainless steel materials, these valves offer excellent durability, corrosion resistance, and long service life. They are widely used in chemical processing, pharmaceuticals, oil & gas, water treatment, food processing, vacuum systems, and various industrial applications.
