| Design Standard | ASME B16.34 |
|---|---|
| Testing Standard | ASME B16.34 |
| Operating Pressure | Up to 439 Bar (6250 PSI) |
| Operating Temperature | Up to +593ºC / 1100ºF |
| Pressure–Temperature Rating | ASME B16.34 |
| Face to Face |
ASME B16.10 Short Pattern for Butt Weld End ASME B16.10 Long Pattern for Flanged End |
| Flanged End | ASME B16.5 |
| Butt Weld End | ASME B16.25 |
| Material | WCB / LCB / WC6 / WC9 / C5 / C12 / CF8M & Other |

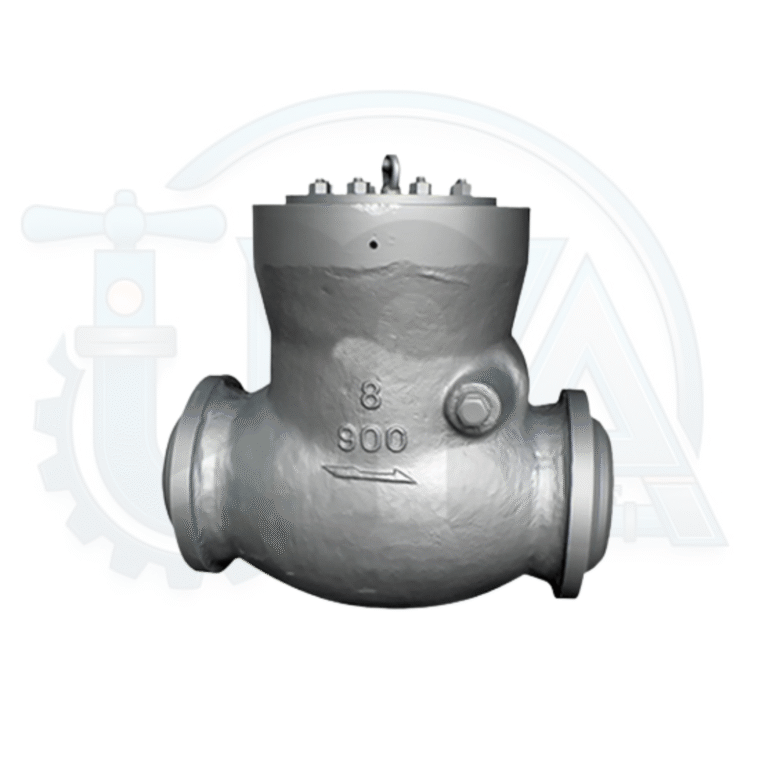

Pressure Seal Check Valves are engineered for high-pressure and high-temperature applications where maximum safety and durability are essential. Their unique pressure seal bonnet design ensures a tighter seal as internal pressure increases, guaranteeing leak-proof performance. Ideal for power generation, steam systems, refineries, and high-pressure industrial pipelines, these valves offer exceptional reliability under extreme operating conditions. The robust construction and precision-engineered components reduce maintenance needs and extend valve life. Pressure Seal Check Valves provide effective backflow prevention while maintaining smooth flow and operational stability.
