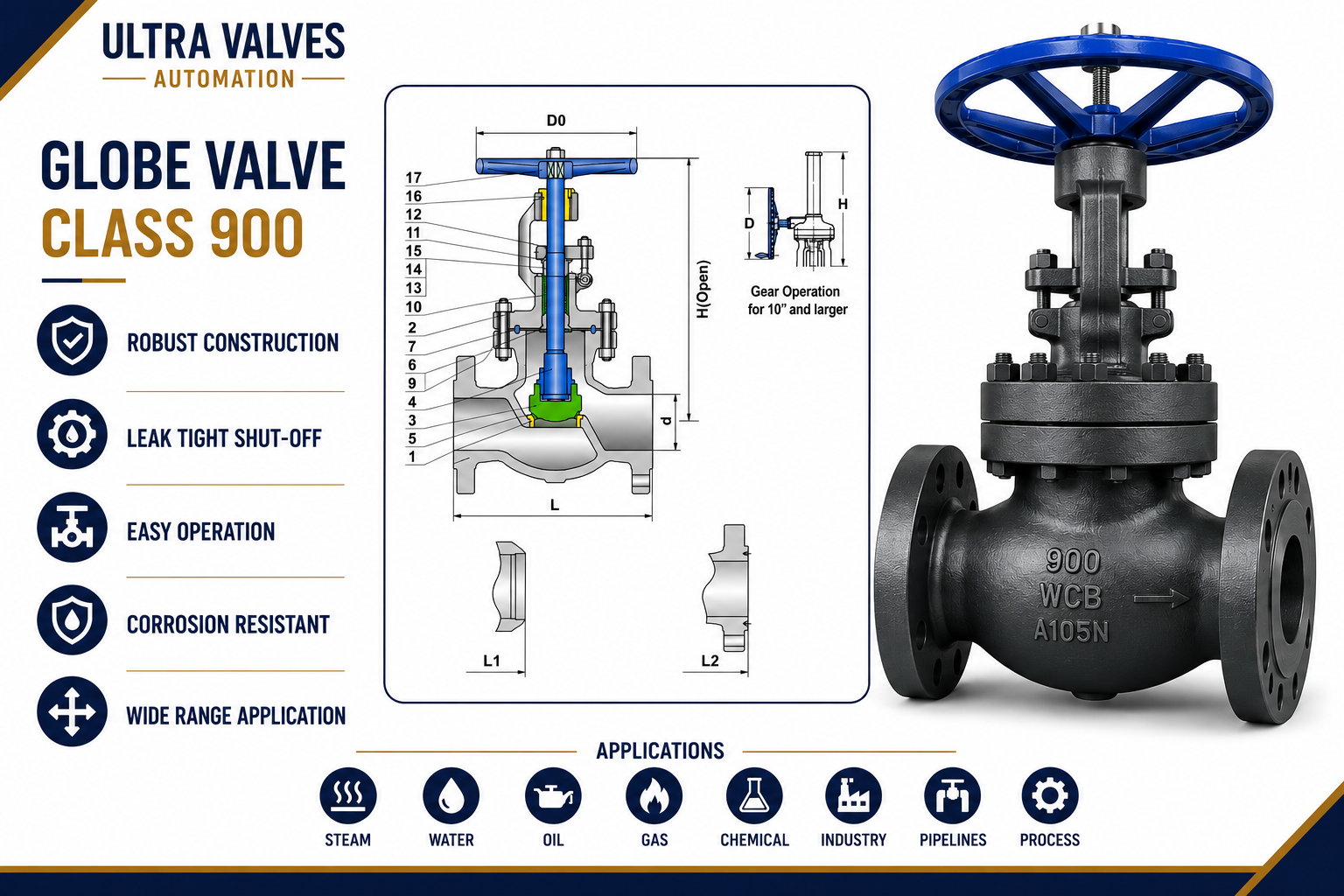

| Valve Type | Globe Valve – Class 900 |
|---|---|
| Design Standard | ASME B16.34 / API 600 / BS 1873 / API 6D |
| Pressure Class | ASA Class 900 |
| Size Range | 50 mm to 300 mm (2″ to 12″) |
| Body Bonnet Design | Bolted Bonnet / Pressure Seal Bonnet / Welded Bonnet |
| End Connection | RF / RTJ / Butt Weld (BW) |
| Disc Type | Plug Disc / Adjustable Disc / Double Disc |
| Body Bonnet Joint | Male-Female Joint with Metallic Ring Gasket Sealing |
| Operation | Hand Wheel Operated / Gear Operated (Optional) |
| Inspection Standards | ASME B16.10 / ASME B16.5 / BS EN 13709 |
| Applications | Steam Service, Power Plants, Refineries, Petrochemical Industries, Oil & Gas Facilities and High-Pressure Process Systems |
Class 900 Globe Valves are designed for severe service applications where high pressure, elevated temperatures, and precise flow regulation are required. Featuring a robust cast steel construction, OS&Y (Outside Screw and Yoke) arrangement, and rising stem design, these valves provide reliable shut-off performance and accurate throttling control. The hardened seating surfaces, precision-machined stem threads, and heavy-duty bonnet assembly ensure excellent durability and extended service life. Suitable for critical industrial services, these valves are widely used in power plants, refineries, petrochemical facilities, steam systems, and high-pressure process pipelines.
