| Valve Type | Sleeved Plug Valve |
|---|---|
| Size Range | 15 NB to 300 NB (1/2″ to 12″) |
| Pressure Class | ANSI Class 150 / 300 / 600 |
| Body Material | WCB / CF8 / CF8M / SS304 / SS316 |
| Sleeve Material | PTFE / RPTFE / PFA |
| Temperature Range | -29°C to +200°C |
| End Connection | Flanged / Threaded / Butt Weld |
| Operation | Lever Operated / Gear Operated / Pneumatic Actuator / Electric Actuator |
| Design Standard | API 599 / ASME B16.34 |
| Testing Standard | API 598 |

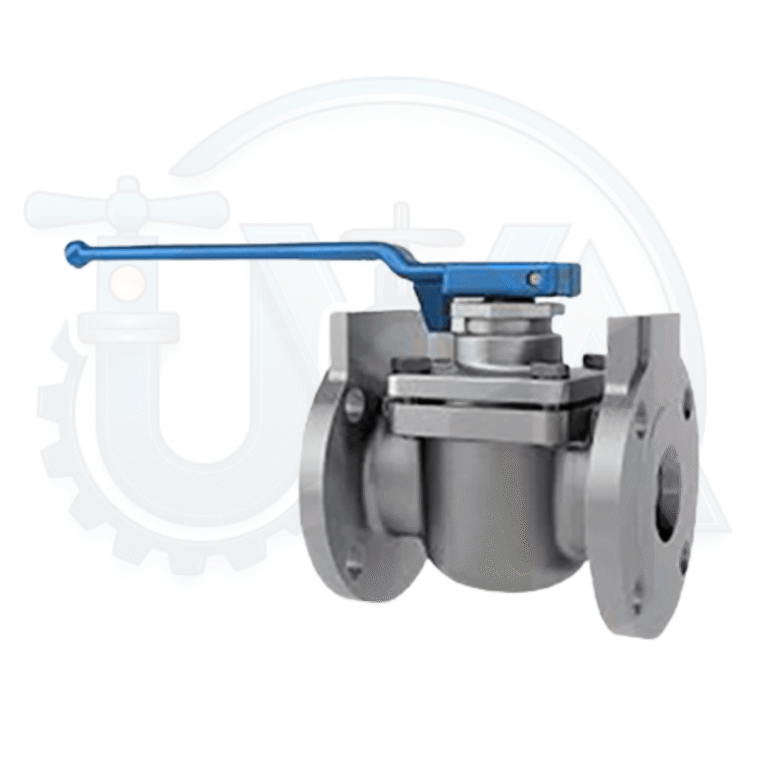

Sleeved Plug Valves are designed for smooth, leak-free flow control in applications requiring tight shutoff and reliable sealing. Featuring a PTFE or polymer sleeve, these valves ensure low friction, corrosion resistance, and long service life. Their simple, maintenance-free design makes them ideal for chemical processing, water treatment, and industrial pipelines handling corrosive or abrasive media. Sleeved Plug Valves offer bubble-tight sealing, easy operation, and excellent durability. With a compact structure and minimal torque requirement, they provide efficient flow management and dependable performance across a wide range of industries.
